The perfect fitting by GIF Modul

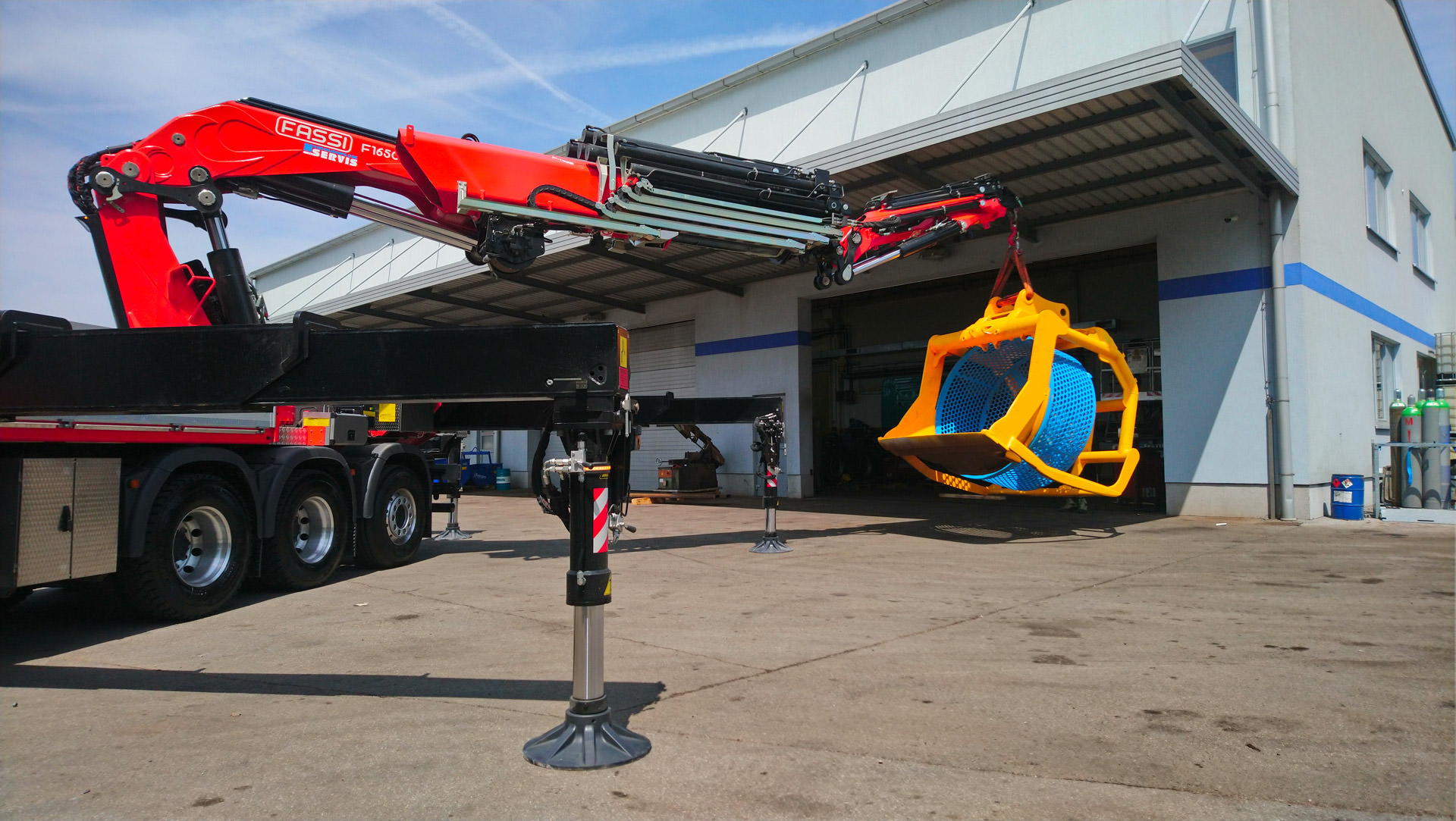

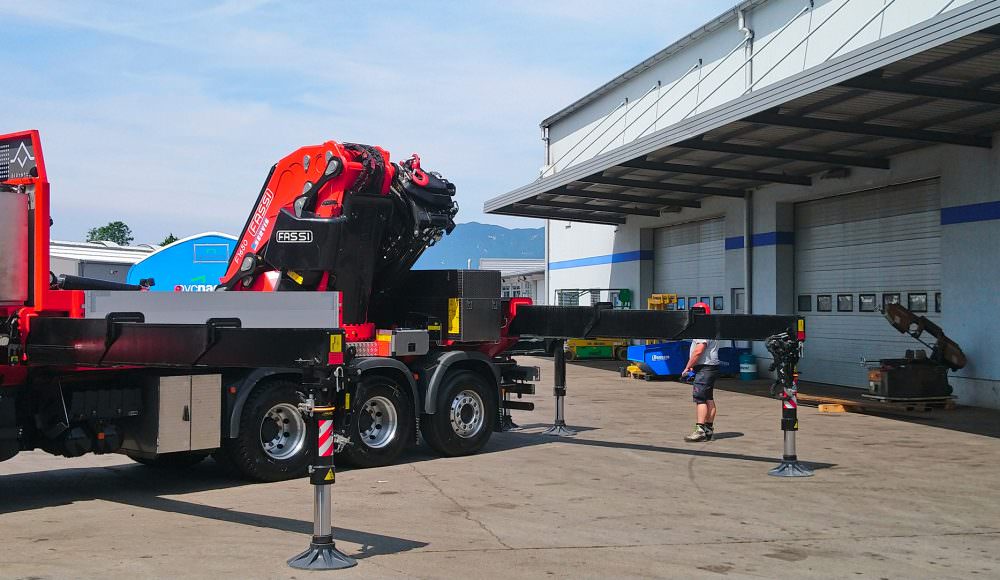

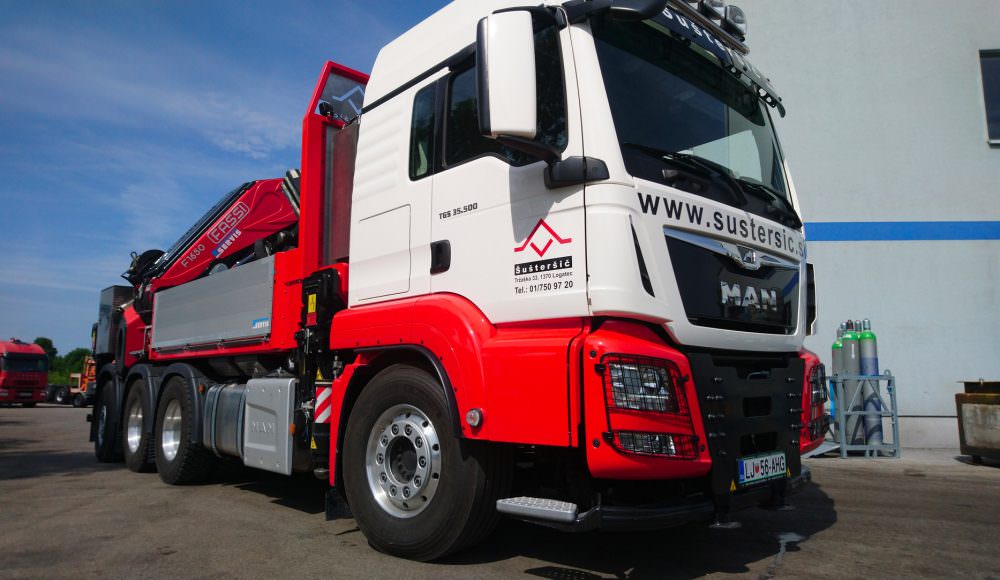

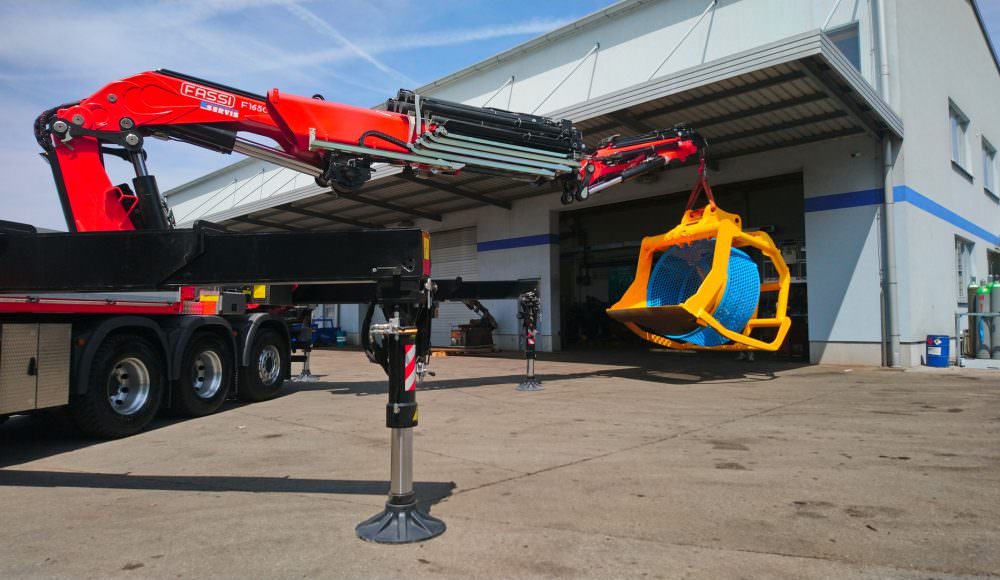

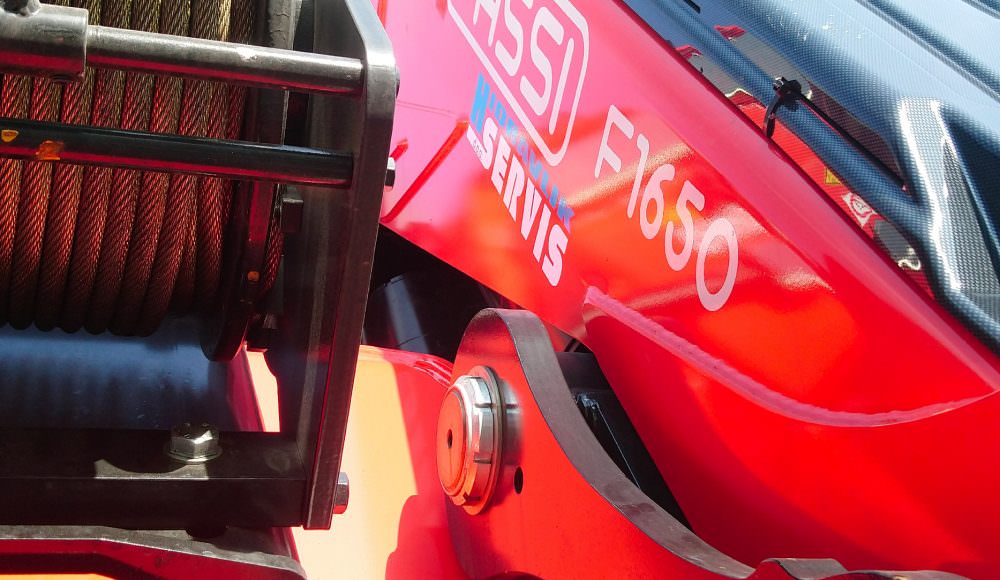

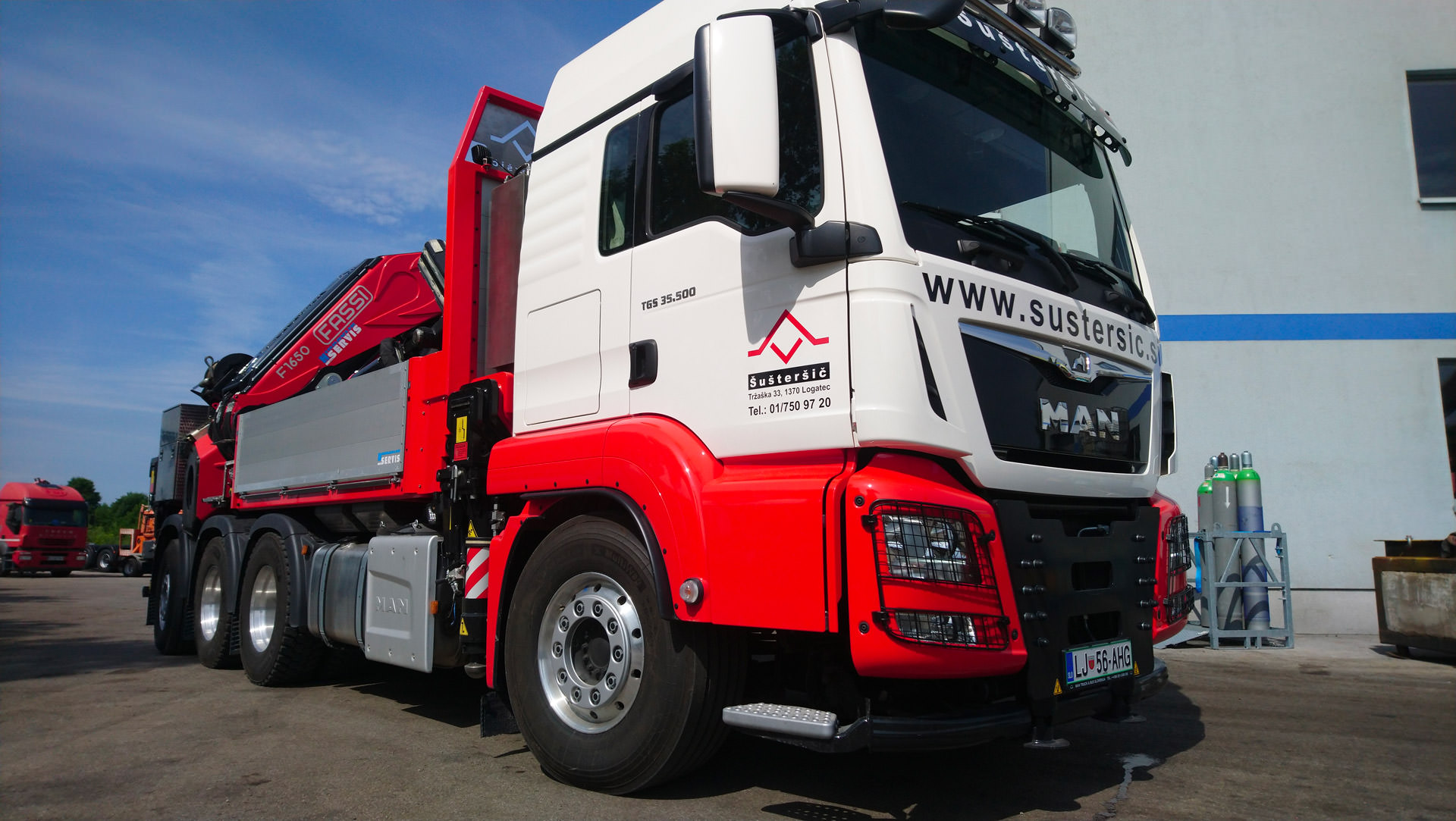

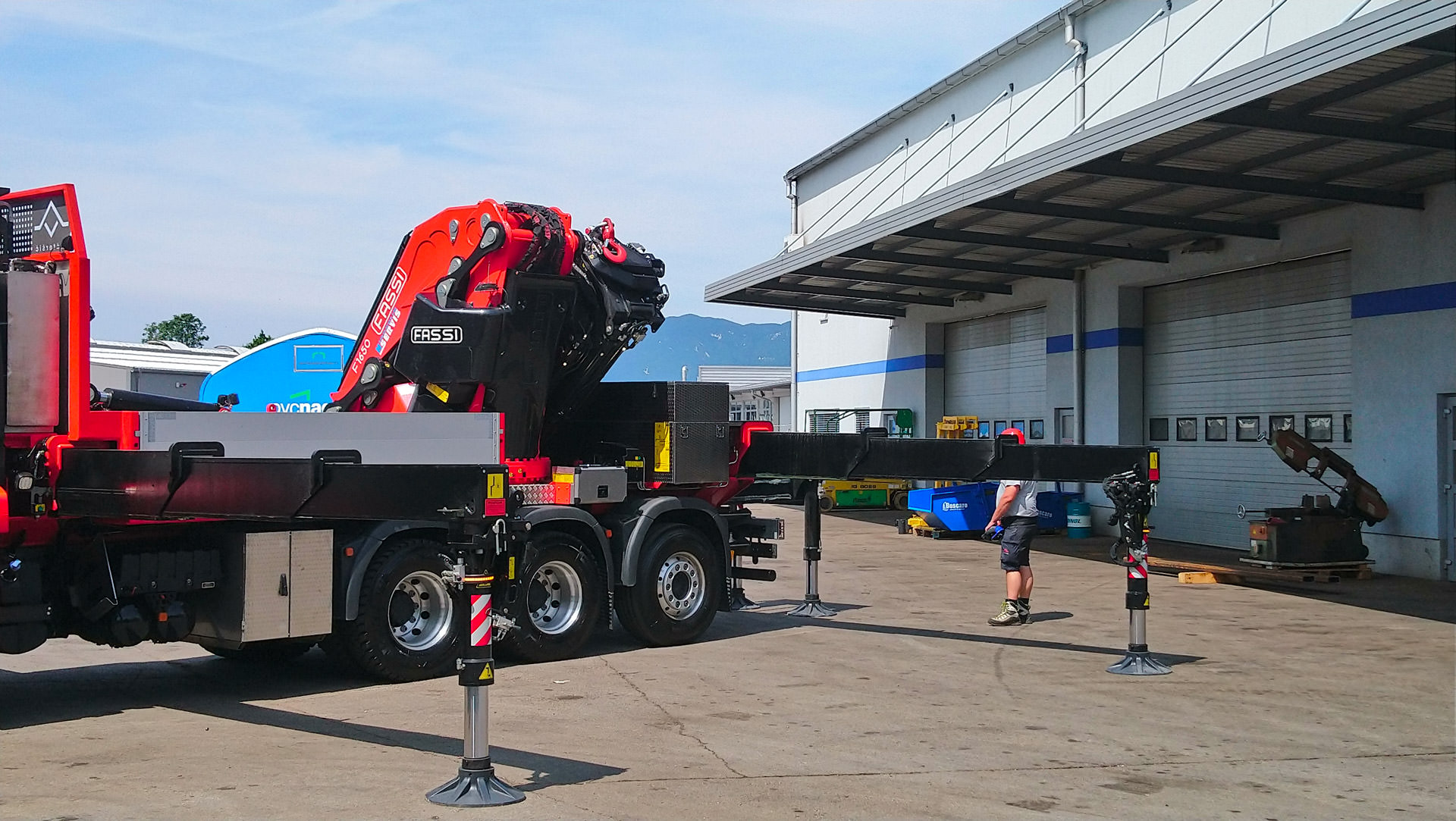

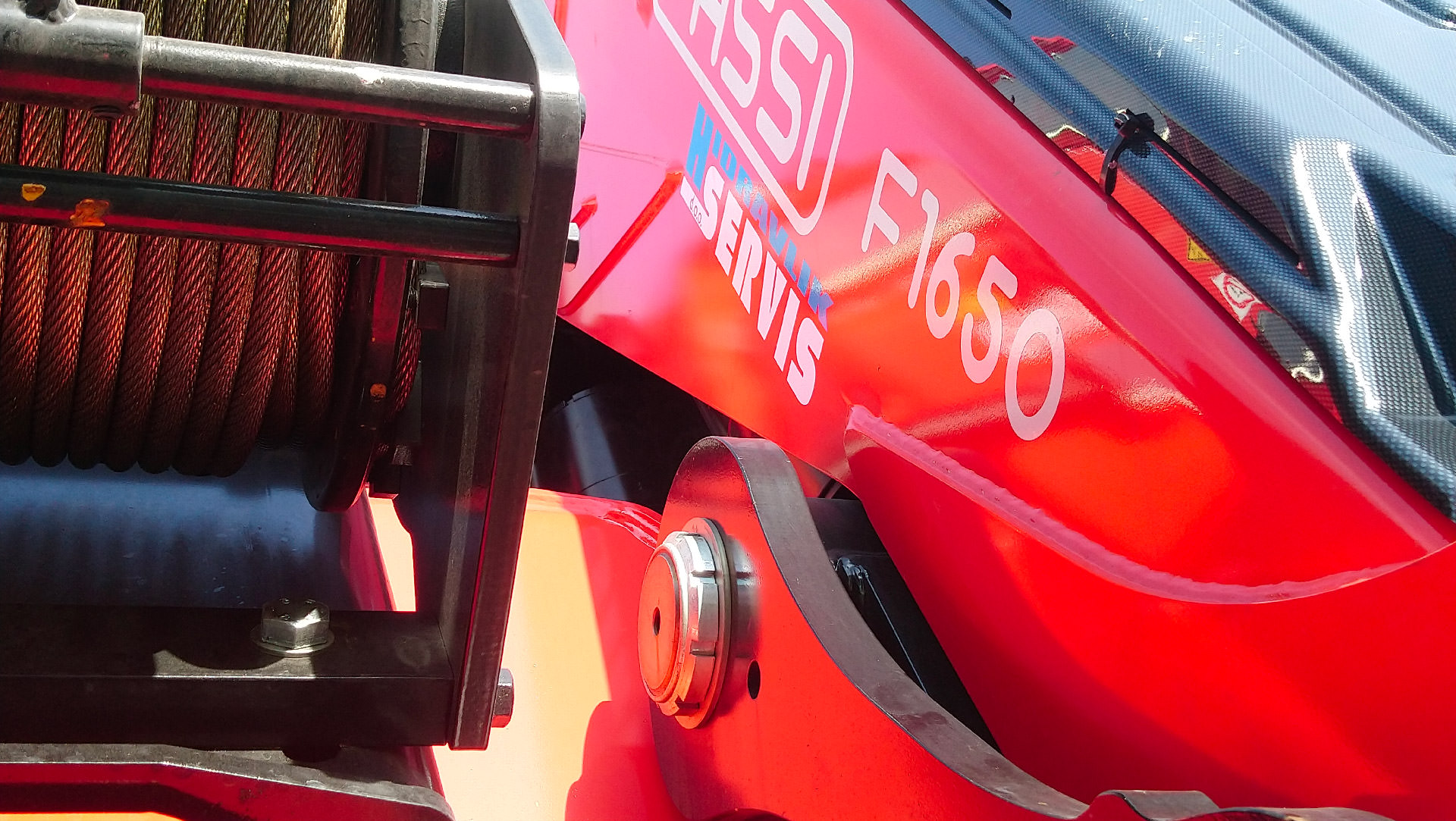

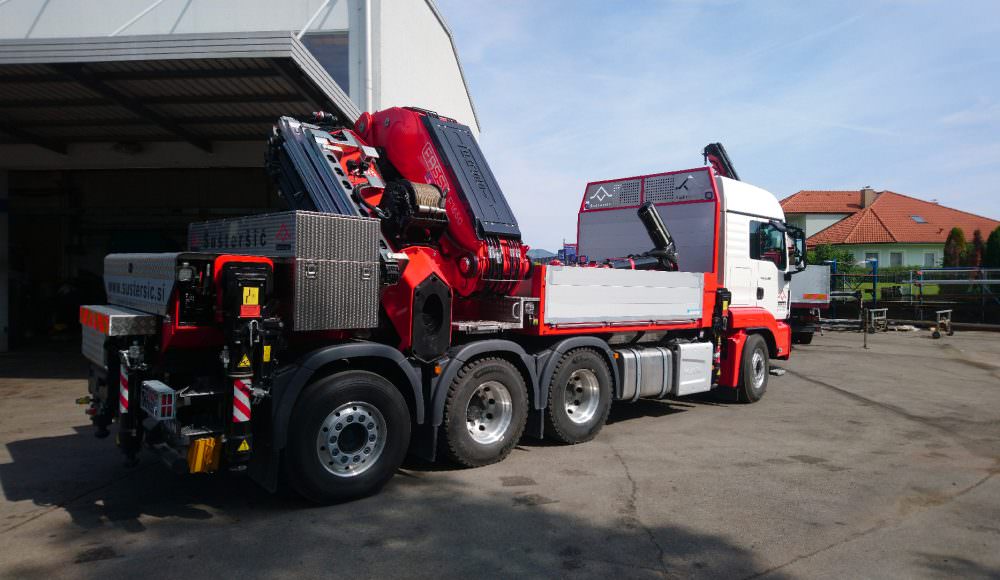

Over the years, Hungary has seen the arrival of a large and highly varied quantity of Fassi cranes, right up to the most recent F1650RA, purchased in December 2018. The aim was to have a truck of less than 32 tonnes in weight, with the highest lifting and arm capacities. This is because in Hungary trucks with an overall weight of more than 32 tonnes require a special permit in order to be taken onto the road. The F1650RA in question was purchased in the .2.28 version, with the L816 jib fitted. It was mounted on a MAN TGS 35.480 8x4H-BL truck. The fitting was completed with the addition of 3 mechanical extensions and a 3-tonne hydraulic hoist. An integrated auxiliary chassis was constructed, and two stabilising outriggers were fitted to the nose for improved capacity of the front and side areas in proximity to the cabin. The final overall weight of the truck was 31,420 kg, which corresponded to the requirements of the client. This fitting is used mainly in the building sector, for the maintenance of the national grid and in airports.

  • Sector Construction
